If your truck or equipment is showing SPN 3216 FMI 10, the fault is related to the Aftertreatment 1 Intake NOx Sensor, commonly referred to as the upstream NOx sensor or inlet NOx sensor.
The basic fault description is:
SPN 3216 — Aftertreatment 1 Intake NOx / Engine Exhaust 1 NOx 1
This is the upstream NOx measurement, located at the inlet side of the SCR system.
FMI 10 — Abnormal Rate of Change
Meaning the NOx signal is changing at a rate the ECM considers outside the expected limits for a properly functioning system.
On many Cummins applications, this corresponds with:
Fault Code 3725 – Aftertreatment Intake NOx Sensor: Abnormal Rate of Change
Although the description sounds like the engine is suddenly producing NOx at an abnormal rate, that isn't really what this fault means.
In most cases, the ECM has determined that the NOx value being reported by the upstream sensor is not behaving like a valid exhaust NOx measurement.
That can be caused by a failing NOx sensor, wiring or power problems, but there is another cause that is easy to overlook:
an exhaust leak that allows outside air to enter the exhaust stream.
Understanding this can prevent unnecessary NOx sensor replacement.
What Does the Intake NOx Sensor Actually Do?
Modern diesel aftertreatment systems commonly use two NOx sensors:
- Intake/upstream NOx sensor – measures NOx entering the SCR portion of the aftertreatment system.
- Outlet/downstream NOx sensor – measures NOx leaving the SCR catalyst.
The engine or aftertreatment controller uses these measurements to monitor emissions and evaluate operation of the SCR system.
The upstream NOx sensor therefore provides the ECM with an estimate of how much NOx is entering the SCR system before DEF injection and SCR conversion take effect.
SPN 3216 refers to this upstream NOx measurement.
This is important because SPN 3216 FMI 10 is not, by itself, an SCR efficiency fault.
It indicates that the ECM does not consider the upstream NOx measurement reliable.
What Does FMI 10 – "Abnormal Rate of Change" Mean?
FMI 10 is defined as an abnormal rate of change.
The ECM continuously monitors the information coming from the NOx sensor.
Under reasonably stable engine operating conditions, exhaust NOx should change in a way that makes sense relative to:
- engine load,
- fueling,
- exhaust temperature,
- exhaust flow,
- EGR operation,
- and other engine parameters.
A healthy signal may move gradually as operating conditions change.
For example:
310 ppm → 325 ppm → 340 ppm → 330 ppm
A problematic signal might behave more like:
315 ppm → 750 ppm → 60 ppm → 680 ppm → invalid
The exact diagnostic logic varies by manufacturer, but the important point is that the ECM is evaluating whether the NOx signal behaves realistically.
If it doesn't, FMI 10 can be set.
What Causes SPN 3216 FMI 10?
There are several possible causes.
1. Failing Intake NOx Sensor
A failing upstream NOx sensor is one of the most common causes.
Modern NOx sensors contain considerably more than an exhaust probe. The sensing element works together with an electronic control module that conditions the signal and communicates with the vehicle ECM.
The sensor may therefore still:
- communicate normally,
- display a ppm reading,
- have proper power and ground,
- and avoid setting an obvious communication code,
while still producing an inaccurate or unstable NOx measurement.
This is one reason FMI 10 can be difficult to diagnose.
The sensor isn't necessarily completely dead.
The ECM simply doesn't trust what it is reporting.

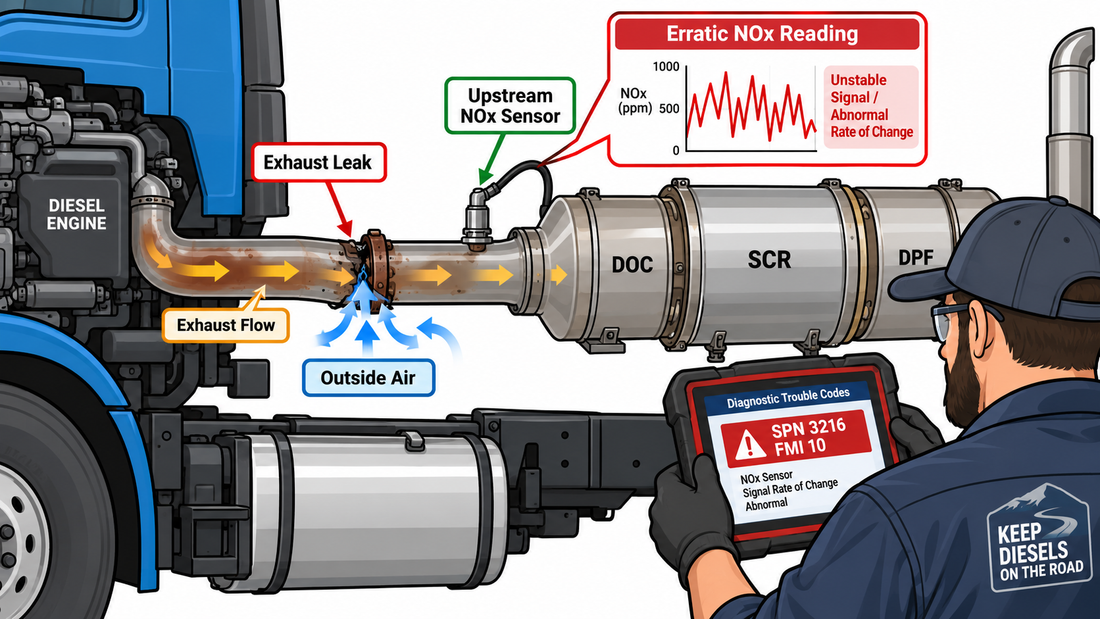

2. Exhaust Leaks Allowing Outside Air Into the Exhaust
This is an important cause that is sometimes overlooked.
An exhaust leak doesn't always mean exhaust gas is continuously blowing outward.
Diesel exhaust systems experience pressure pulsations as the engine runs. Depending on the location of the leak, exhaust velocity and pressure conditions, a leak can sometimes allow outside air to be drawn into the exhaust stream.
This can happen through:
- leaking V-band clamps,
- cracked exhaust pipes,
- loose flanges,
- damaged bellows or flex joints,
- leaking gaskets,
- cracked aftertreatment housings,
- improperly seated connections.
If that leak is upstream of or close enough to the intake NOx sensor, the sensor may be exposed to exhaust gas that has been diluted with ambient air.
That matters because ambient air contains a large amount of oxygen compared with normal diesel exhaust.
The NOx sensor is designed to analyze exhaust gas under expected operating conditions. Introducing fresh air can change the gas composition around the sensing element and cause the NOx value to become inaccurate, unstable or inconsistent with the engine's calculated operating conditions.
The ECM may then interpret the resulting signal as an abnormal rate of change and set SPN 3216 FMI 10.
Why This Can Be Misdiagnosed
An exhaust leak can produce a situation where:
- the NOx sensor has proper power,
- communication is normal,
- the sensor occasionally appears to read normally,
- but the NOx ppm value becomes erratic under certain engine speeds or loads.
The sensor may be blamed when the real problem is the exhaust stream itself.
We've seen situations where repairing the exhaust leak corrected the NOx sensor fault without replacing the sensor.
For this reason, exhaust integrity should always be checked before replacing an upstream NOx sensor for an FMI 10 fault.
3. Power or Ground Problems
Before condemning the NOx sensor, inspect its power supply and ground.
Look for:
- loose connector terminals,
- pushed-back pins,
- corrosion,
- water intrusion,
- damaged wiring,
- harnesses contacting the exhaust,
- poor chassis or engine grounds,
- intermittent power supply.
A brief voltage interruption can cause the sensor's electronic module to reset or produce unreliable information.
Don't assume pin locations or operating voltage from another application.
NOx sensor wiring and supply voltage can vary between manufacturers and equipment.
Always use the appropriate wiring diagram.
4. NOx Sensor Harness or Connector Damage
NOx sensor wiring operates in an extremely harsh environment.
The harness is routinely exposed to:
- exhaust heat,
- road debris,
- vibration,
- water,
- salt,
- mud,
- oil,
- and chemicals.
Closely inspect the harness around the exhaust system.
Pay particular attention to:
- melted insulation,
- rubbed-through wiring,
- broken loom,
- loose retaining clips,
- damaged connectors,
- stretched wiring.
Sometimes the damaged portion of harness is hidden behind the aftertreatment assembly and is not visible during a quick inspection.
5. Communication Problems
Modern NOx sensors are intelligent devices that communicate digitally with the engine or aftertreatment controller.
If communication is being interrupted, the NOx data may become unreliable.
However, severe communication failures commonly produce additional fault codes.
If SPN 3216 FMI 10 is accompanied by NOx sensor communication, power supply or datalink faults, diagnose those faults first.
6. ECM Calibration or Software
OEM troubleshooting procedures may also require checking ECM calibration or software revisions.
This becomes particularly important when:
- the problem began after ECM programming,
- the NOx sensor was recently replaced,
- multiple identical vehicles are experiencing the same issue,
- or the manufacturer has published a calibration update or technical service bulletin.
What Usually Does NOT Cause SPN 3216 FMI 10?
Because this fault involves a NOx sensor, it's easy to immediately start troubleshooting the entire SCR system.
That can send the diagnosis in the wrong direction.
SPN 3216 FMI 10 does not automatically mean you have:
- a plugged DPF,
- contaminated DEF,
- a failed DEF pump,
- a bad DEF dosing valve,
- a failed SCR catalyst,
- or poor SCR conversion efficiency.
Those problems can certainly exist and may produce additional faults.
But SPN 3216 FMI 10 specifically tells you that the upstream NOx measurement has failed a plausibility or validity check.
The diagnostic question should therefore be:
Why doesn't the ECM trust the upstream NOx measurement?
How to Diagnose SPN 3216 FMI 10
A practical diagnostic sequence looks like this.
Step 1: Check All Active and Recent Fault Codes
Start with the complete fault list.
Look for related faults involving:
- intake NOx sensor power,
- intake NOx sensor communication,
- datalink communication,
- sensor heater operation,
- ECM voltage,
- exhaust temperature sensors,
- engine air management.
A second fault may explain why the NOx reading has become unreliable.
Repair obvious power or communication faults first.
Step 2: Check the Exhaust System for Leaks
Before replacing the NOx sensor, inspect the exhaust system carefully.
Pay particular attention to leaks upstream of the intake NOx sensor.
Inspect:
- turbocharger outlet connections,
- exhaust piping,
- V-band clamps,
- flex sections,
- bellows,
- DOC/DPF connections,
- aftertreatment flanges,
- gaskets,
- sensor mounting bosses,
- cracked welds or housings.
Look for black soot around joints and clamps.
Soot is often a strong indication that exhaust gas has been escaping from that connection.
However, don't assume the absence of heavy soot means there isn't a leak. Small leaks can sometimes be difficult to see.
Depending on the application, useful leak-testing methods may include:
- visual inspection,
- listening for exhaust leakage,
- checking for soot trails,
- smoke testing,
- or temporarily pressurizing the exhaust system according to an approved diagnostic procedure.
If an exhaust leak is found ahead of the NOx sensor, repair the leak before replacing the sensor and rerun the diagnostic.
Step 3: Inspect the NOx Sensor and Harness
Inspect the sensor assembly and follow its harness back to the vehicle connection.
Look for:
- melted insulation,
- damaged conduit,
- rubbed-through wires,
- loose connectors,
- bent terminals,
- corrosion,
- moisture,
- damaged sensor wiring.
Gently move the harness while inspecting it.
Intermittent wiring faults may only appear when the harness moves.
Step 4: Verify Power and Ground
Use the manufacturer's wiring diagram to identify the correct circuits.
Verify:
- sensor power supply,
- sensor ground,
- circuit integrity.
Whenever possible, use a loaded circuit test or voltage-drop test rather than relying only on continuity.
A damaged wire may show continuity with a multimeter while being unable to carry enough current during actual sensor operation.
Step 5: Watch NOx Sensor Data
Use your diagnostic software to monitor the upstream NOx sensor.
Depending on the application, useful parameters may include:
- intake NOx concentration,
- NOx sensor status,
- sensor heater status,
- exhaust temperature,
- engine load,
- exhaust mass flow,
- EGR position,
- engine speed.
Allow the system to reach the operating conditions required for the diagnostic to run.
You're looking for a signal that responds logically to changes in engine operation.
Don't focus entirely on one particular ppm number.
Instead, ask:
Does the signal make sense?
Watch for:
- sudden unexplained spikes,
- rapid drops,
- a reading stuck at one value,
- intermittent invalid readings,
- sensor resets,
- behavior that changes dramatically at certain engine speeds.
If the readings become especially unstable when exhaust flow or engine speed changes, look carefully for an exhaust leak.
Changes in exhaust pressure and velocity can change how much ambient air is being pulled through a leak.
Step 6: Verify ECM Software
Confirm that the ECM calibration is current and check applicable service information.
If the OEM has released updated diagnostic logic or calibration addressing the fault, software should be dealt with before replacing unnecessary parts.
Step 7: Replace the Intake NOx Sensor if Necessary
If:
- there are no related power or communication faults,
- the exhaust system is leak-free,
- wiring and connectors are good,
- power and ground are correct,
- ECM calibration is correct,
- and SPN 3216 FMI 10 continues to return,
the intake NOx sensor becomes the most likely cause.
At that point, replacing the sensor is usually justified.
Can You Test a NOx Sensor With an Ohmmeter?
Not very effectively.
A modern NOx sensor isn't comparable to a conventional two-wire temperature sensor.
The probe, heater circuitry, sensing cells and electronic control module operate together as an integrated assembly.
Because of this, simply measuring resistance between terminals generally cannot tell you whether the sensor is accurately measuring NOx.
Electrical testing is more useful for checking:
- power,
- ground,
- wiring integrity,
- and communication circuits.
The actual sensing performance is usually evaluated through live data and the ECM's diagnostic logic.
What Should You Do After Repairing the Problem?
Whether you repaired an exhaust leak or replaced the NOx sensor, don't simply clear the code and consider the repair complete.
The ECM may require specific operating conditions before it reruns the NOx sensor diagnostic.
Depending on the application, verification may require:
- reaching operating temperature,
- driving under load,
- completing an OEM aftertreatment test,
- performing a regeneration,
- or following a specified drive cycle.
The repair should only be considered verified once the monitor has had an opportunity to run and SPN 3216 FMI 10 does not return.
A Common Diagnostic Mistake
There are two common mistakes with this fault.
The first is immediately replacing the NOx sensor without checking the electrical system or exhaust.
The second is seeing the words NOx and aftertreatment and immediately troubleshooting DEF quality, dosing quantity, DPF restriction and SCR conversion efficiency.
A better diagnostic path is:
Check related faults → inspect the exhaust for leaks → inspect wiring → verify power and ground → evaluate live NOx data → verify software → replace the sensor if necessary.
The easiest way to understand SPN 3216 FMI 10 is:
"The ECM is receiving information from the upstream NOx sensor, but something about that information doesn't make sense."
Sometimes the sensor itself is producing bad information.
Sometimes the exhaust gas reaching the sensor has been altered by outside air entering through a leak.
Finding out which one is happening is the key to diagnosing the fault correctly.
Need an Intake NOx Sensor?
AftertreatmentParts.com supplies replacement NOx sensors for Cummins, PACCAR, Volvo, Mack, International, Caterpillar and many other heavy-duty and off-road applications.
If you're unsure which sensor your application requires, search our catalog using your existing part number or contact us with the engine serial number, VIN or equipment information.
We also carry:
- DEF pumps
- DEF dosing valves
- NOx sensors
- particulate matter sensors
- exhaust temperature sensors
- pressure sensors
- DEF headers
- aftertreatment modules and related components
Our components are backed by a one-year warranty, with shipping available throughout Canada and the United States.
Before ordering a NOx sensor, always confirm the correct part number for your specific engine and aftertreatment system.
