The Interplay of DOC, DPF, SCR, and DEF in Diesel Emission Control

Introduction

The reduction of harmful emissions in diesel engines involves a complex, yet finely tuned system comprising the Diesel Oxidation Catalyst (DOC), Diesel Particulate Filter (DPF), Selective Catalytic Reduction (SCR), and Diesel Exhaust Fluid (DEF). This blog post aims to dissect the intricacies of these components, emphasizing the formation and reduction of nitrogen oxides (NOx), a major environmental concern, and how these systems collaboratively mitigate emissions.

The Formation and Impact of NOx

Nitrogen oxides, collectively known as NOx, are a group of highly reactive gases comprising nitrogen and oxygen. Produced during the combustion process in diesel engines, NOx is particularly concerning due to its detrimental environmental and health effects, including smog formation and respiratory issues.

How NOx is Produced

  • NOx primarily forms in diesel engines when nitrogen and oxygen in the air react under high-temperature combustion conditions.
  • The relationship between combustion temperature and NOx production is directly proportional; higher combustion temperatures lead to more NOx emissions.
  • Diesel engines, known for their efficiency and power, achieve high combustion temperatures, thus posing a challenge in balancing engine performance and NOx emissions.

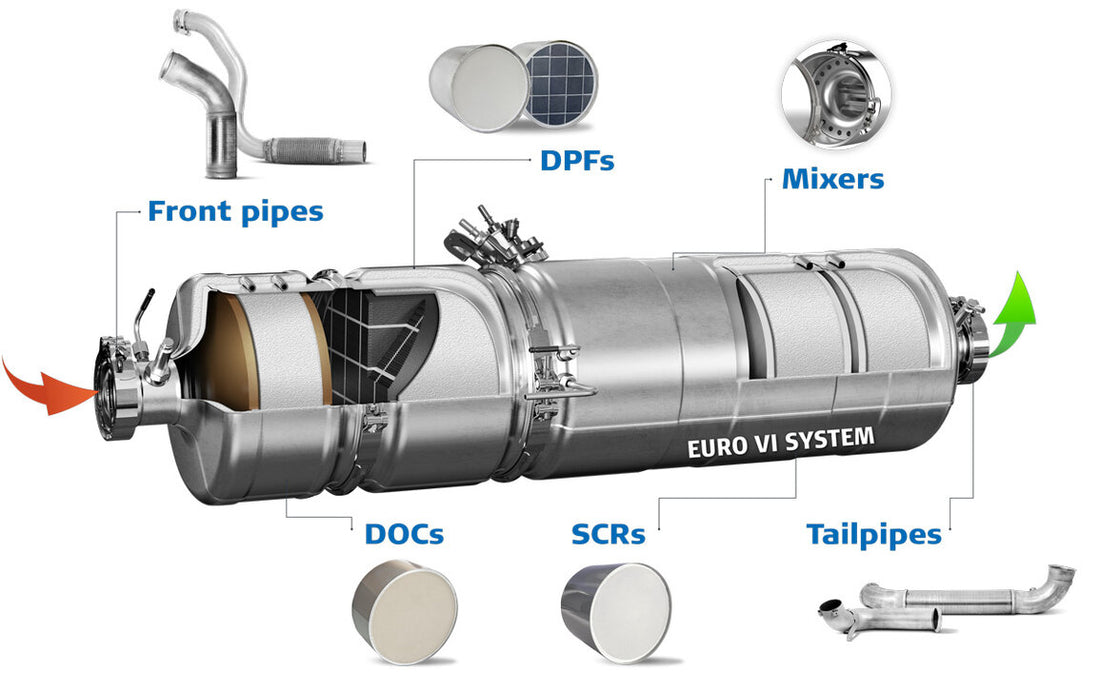

Journey of Exhaust Gases Through the Emission Control System

The exhaust gases in a diesel engine follow a sequential trajectory through various stages of the emission control system:

  1. From Engine to DOC: Upon exiting the engine, the exhaust gases first enter the Diesel Oxidation Catalyst.

  2. DOC Stage: Here, harmful gases like carbon monoxide (CO) and hydrocarbons (HC) are oxidized into less harmful carbon dioxide (CO2) and water (H2O). This process also increases the exhaust gas temperature, aiding in the subsequent DPF stage.

  3. DPF Stage: The heated gases then flow into the Diesel Particulate Filter, where soot and particulate matter are trapped and periodically burned off during regeneration.

  4. SCR Stage: After particulate filtration, the gases move to the Selective Catalytic Reduction unit.

  5. Final Emission Reduction: Here, DEF plays its role in significantly reducing NOx levels before the gases are released into the atmosphere.

In-Depth Look at Diesel Exhaust Fluid (DEF)

DEF is a non-toxic solution, usually comprising 32.5% urea and 67.5% deionized water. It's integral to the SCR process for NOx reduction:

  • Chemical Reaction: When DEF is injected into the exhaust stream within the SCR system, it vaporizes and decomposes into ammonia and carbon dioxide.
  • NOx Conversion: This ammonia then reacts with NOx in the presence of a catalyst, converting it into nitrogen (N2) and water vapor (H2O), which are harmless to the environment.

The Balancing Act: Combustion Temperature and NOx Production

Managing the delicate balance between engine performance and NOx emissions is a significant engineering challenge:

  • Higher Combustion Temperatures: While they enhance engine power and efficiency, they also escalate NOx production.
  • Emission Control Systems: The integration of DOC, DPF, SCR, and DEF ensures that despite the high combustion temperatures necessary for optimal engine performance, the resultant NOx emissions are substantially reduced.

Conclusion

The cooperative functionality of the DOC, DPF, SCR, and DEF systems in diesel engines exemplifies an advanced approach to managing the paradox of high-performance engines and environmental responsibility. By understanding the production and reduction of NOx, alongside the systematic reduction of other harmful emissions, this integrated system underscores the technological strides made in the field of diesel engine emissions control. Regular maintenance and a thorough understanding of these systems are crucial for their optimal performance and for continuing to mitigate their environmental impact.
