DPF Regeneration Does NOT Require DEF: Understanding the Difference Between DPF and SCR

DPF Regeneration Does NOT Require DEF: Understanding the Difference Between DPF and SCR

One of the most common misunderstandings about modern diesel aftertreatment systems is that DEF is used to regenerate or clean the DPF.

It isn't.

The Diesel Particulate Filter (DPF) and Selective Catalytic Reduction (SCR) system are often packaged together inside the same aftertreatment assembly, sometimes even inside what looks like a single exhaust module. Because of this, it's easy to think of them as one emissions system performing one process.

In reality, DPF regeneration and SCR NOx reduction are two completely different emissions-control processes designed to deal with two different pollutants.

And importantly:

DEF injection is not required for DPF regeneration.

Understanding that distinction can make troubleshooting aftertreatment problems considerably easier.

The Quick Answer

The easiest way to remember the difference is:

System What it removes How it does it
DPF Soot / particulate matter Physically traps soot, then burns it during regeneration
SCR Nitrogen oxides (NOx) Uses DEF-derived ammonia and a catalyst to chemically reduce NOx

A DPF regeneration is essentially a soot-burning process.

SCR is a NOx-reduction process.

They may happen inside the same exhaust assembly, and they may operate at the same time, but one process is not the other.

What the DPF Actually Does

The Diesel Particulate Filter exists primarily to remove particulate matter—especially soot—from the exhaust.

The DPF contains a porous wall-flow filter. Exhaust gas can pass through the filter material, while much of the particulate matter becomes trapped inside it.

Over time, that soot accumulates.

If nothing were done about it, eventually the filter would become excessively restricted.

That's why the DPF periodically needs to regenerate.

Regeneration simply means oxidizing, or effectively burning, the accumulated soot into primarily carbon dioxide so that the filter can continue operating.

The EPA describes DPF regeneration as the oxidation and removal of accumulated soot from the filter.

There are generally two ways this happens.

Passive Regeneration

When exhaust temperatures and operating conditions are appropriate, soot can continuously oxidize inside the DPF without the operator even noticing.

This is called passive regeneration.

There is no special DEF event required to make this happen.

Active Regeneration

If normal operation isn't producing enough passive regeneration, the engine control system may deliberately increase exhaust temperature.

Depending on the engine and aftertreatment design, this may involve things such as:

  • altered engine injection strategy

  • late or post fuel injection

  • an exhaust-mounted hydrocarbon doser

  • oxidation of fuel across the Diesel Oxidation Catalyst (DOC)

  • other engine thermal-management strategies

The goal is to create enough heat at the DPF to oxidize the accumulated soot.

Notice what isn't on that list:

DEF.

Active regeneration can involve additional diesel fuel, but that should not be confused with Diesel Exhaust Fluid.

EPA technical documentation describes active regeneration systems using fuel and the oxidation catalyst to generate the heat needed for DPF regeneration.

So What Is the DEF Actually Doing?

DEF belongs to the SCR side of the system.

Its purpose is not to remove soot.

Its purpose is to help remove NOx—nitrogen oxides—from the exhaust.

DEF is injected into the exhaust upstream of the SCR catalyst. Through thermal decomposition and chemical reactions, it produces ammonia, which reacts with NOx over the SCR catalyst.

The end result is primarily:

Nitrogen + water

instead of harmful NOx emissions.

The EPA specifically distinguishes the two technologies: the DPF reduces particulate matter, while SCR uses DEF as part of the process for reducing NOx.

So when the DEF dosing valve injects fluid into the exhaust, it isn't washing out the DPF, cleaning the DPF, or causing the DPF soot to burn.

It's performing an entirely different job.

Then Why Do People Confuse DPF Regeneration With DEF?

There are a few reasons.

The biggest is that the components are physically located very close together.

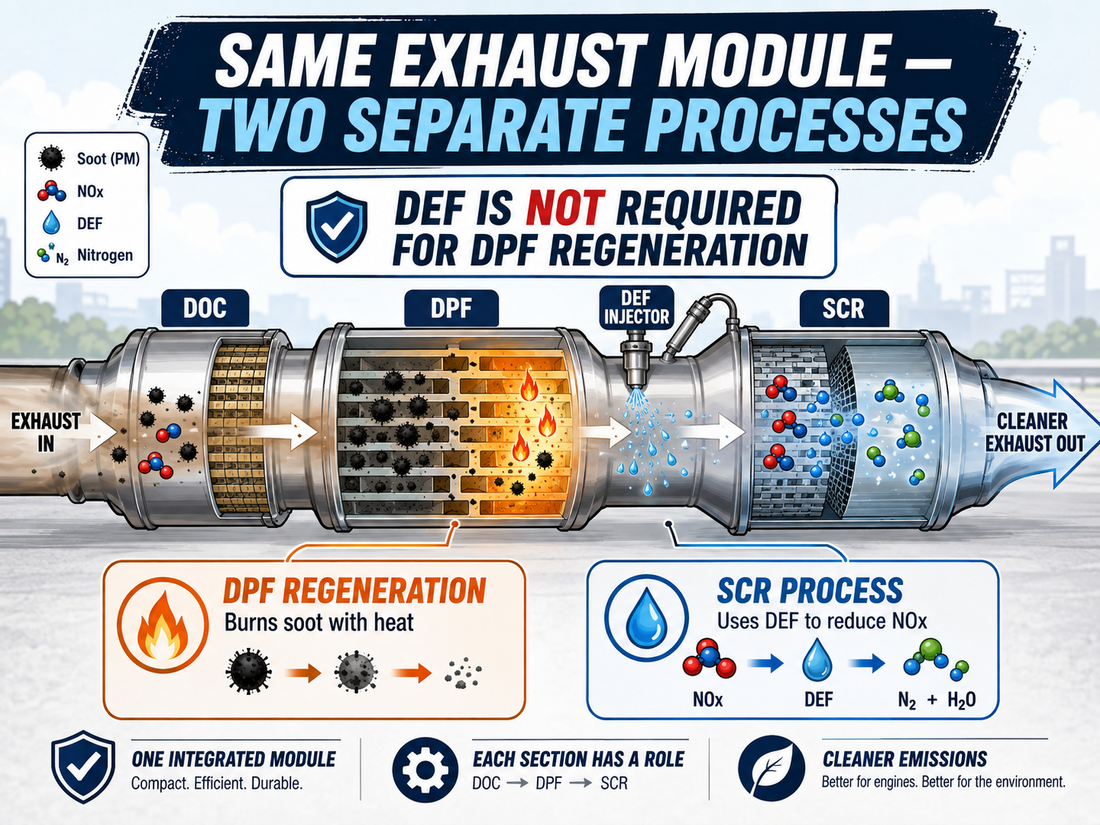

A simplified modern aftertreatment system may look something like this:

Engine → DOC → DPF → DEF Injector/Mixer → SCR Catalyst → Tailpipe

Some manufacturers package several of these components together inside one large aftertreatment housing.

Detroit's One Box is probably one of the most recognizable examples, but similar integrated assemblies exist across Cummins, PACCAR, Volvo/Mack, International and off-highway applications.

From the outside, it can look like one big emissions system.

From a diagnostic standpoint, however, there are multiple different chemical and physical processes happening inside it.

That distinction matters.

A DPF Can Regenerate Without DEF Injection

This is probably the most important takeaway.

If the engine is performing an active DPF regeneration, the DEF doser does not need to inject DEF in order for soot to burn out of the DPF.

The DPF needs the correct conditions for soot oxidation—most importantly sufficient temperature and a functioning DPF/DOC system.

DEF is not the fuel being used to burn the soot.

In fact, the DEF dosing point is commonly located downstream of the DPF, making the misconception even easier to understand once you visualize the exhaust flow.

The soot has already passed into and been captured by the DPF before the exhaust reaches the DEF dosing portion of the system.

And SCR Doesn't Need a DPF Regen to Work Either

The opposite is also important.

The SCR system doesn't have to wait for a DPF regeneration before it can reduce NOx.

During normal driving, whenever conditions allow SCR operation, the ECM can command DEF dosing and the SCR catalyst can reduce NOx.

That can happen while the DPF is simply doing its normal job of trapping particulate matter.

So you can have:

DPF filtration occurring while SCR is working.

You can have:

Passive DPF regeneration while SCR is working.

You can have:

Active DPF regeneration occurring as its own process.

The systems share the exhaust stream, sensors, ECM strategies and operating conditions, but their fundamental purposes remain different.

There Is an Important Diagnostic Catch

This doesn't mean the systems can never influence one another.

Modern aftertreatment systems are heavily integrated.

An SCR fault, NOx sensor fault, temperature sensor issue, DPF restriction, DEF system fault or other active code may affect the ECM's overall aftertreatment strategy.

Depending on the manufacturer and fault condition, the ECM may inhibit certain functions, command a derate, change dosing strategy or refuse to perform a parked regeneration until another problem is corrected.

That's a control-system interdependency, however.

It does not mean DEF is chemically required to regenerate the DPF.

That's an important distinction when diagnosing a truck.

A Simple Example

Imagine a truck with a failed DEF pump.

The DEF pump cannot supply the required DEF pressure.

That will eventually cause problems with SCR operation because the system cannot properly dose DEF and control NOx.

But that doesn't suddenly change how the DPF burns soot.

The DPF still regenerates by creating enough temperature to oxidize accumulated particulate matter.

Likewise, imagine the SCR catalyst isn't converting NOx efficiently.

That does not automatically mean the DPF is plugged.

They are different systems dealing with different pollutants.

This Distinction Matters When Diagnosing Faults

We regularly see aftertreatment problems approached as though everything inside the exhaust module performs the same job.

It doesn't.

If you're diagnosing a problem, first ask:

What process is actually failing?

If you're dealing with excessive soot loading, high DPF differential pressure or unsuccessful regeneration, you're primarily investigating the particulate filtration and regeneration side of the system.

That may include:

  • DPF

  • DOC

  • exhaust temperature sensors

  • differential pressure sensor

  • pressure-sensor tubing

  • hydrocarbon doser where equipped

  • engine operating conditions

  • excessive engine-out soot production

If you're dealing with poor NOx conversion, DEF pressure problems, reductant quality faults or SCR efficiency issues, you're investigating the SCR/DEF side.

That may include:

  • DEF pump

  • DEF dosing valve

  • DEF header

  • DEF quality

  • inlet NOx sensor

  • outlet NOx sensor

  • SCR catalyst

  • wiring and connectors

  • exhaust leaks

  • temperature and operating conditions

There can absolutely be overlap during diagnosis.

But knowing which emissions process you're actually troubleshooting prevents a lot of unnecessary parts replacement.

DPF = Soot. SCR = NOx.

If you remember nothing else from this article, remember this:

The DPF deals primarily with soot.

It traps particulate matter and periodically burns accumulated soot through regeneration.

The SCR deals primarily with NOx.

It uses DEF and an SCR catalyst to convert NOx into much less harmful compounds.

DEF does not regenerate the DPF.

They're two separate emissions-reduction processes operating within the same overall aftertreatment system.

Once you understand that, a lot of modern diesel aftertreatment diagnostics start making considerably more sense.
