If you've replaced a DEF pump only to have another one fail months later, you're not alone.
One of the most overlooked causes of repeat DEF pump failures isn't the pump at all—it's the 12-pin electrical connector. When a DEF pump fails internally, Diesel Exhaust Fluid (DEF) can migrate into the connector, contaminating the terminals and wiring. If that connector isn't replaced, it can damage the new pump or create electrical faults that look exactly like another failed pump.
Here's what every diesel technician and fleet manager should know.
The Hidden Failure Most People Miss
A DEF pump is designed to deliver pressurized Diesel Exhaust Fluid to the SCR system. Over time, internal seals can fail, allowing DEF to escape where it doesn't belong—including the pump's electrical connector.
Once DEF enters the 12-pin connector, it doesn't simply dry up and disappear.
Instead, it can:
- Corrode electrical terminals
- Create white crystallized deposits
- Increase electrical resistance
- Cause intermittent communication faults
- Wick into the wiring harness
The result? You install a brand-new DEF pump onto a contaminated connector, and the new pump begins experiencing the same electrical issues.

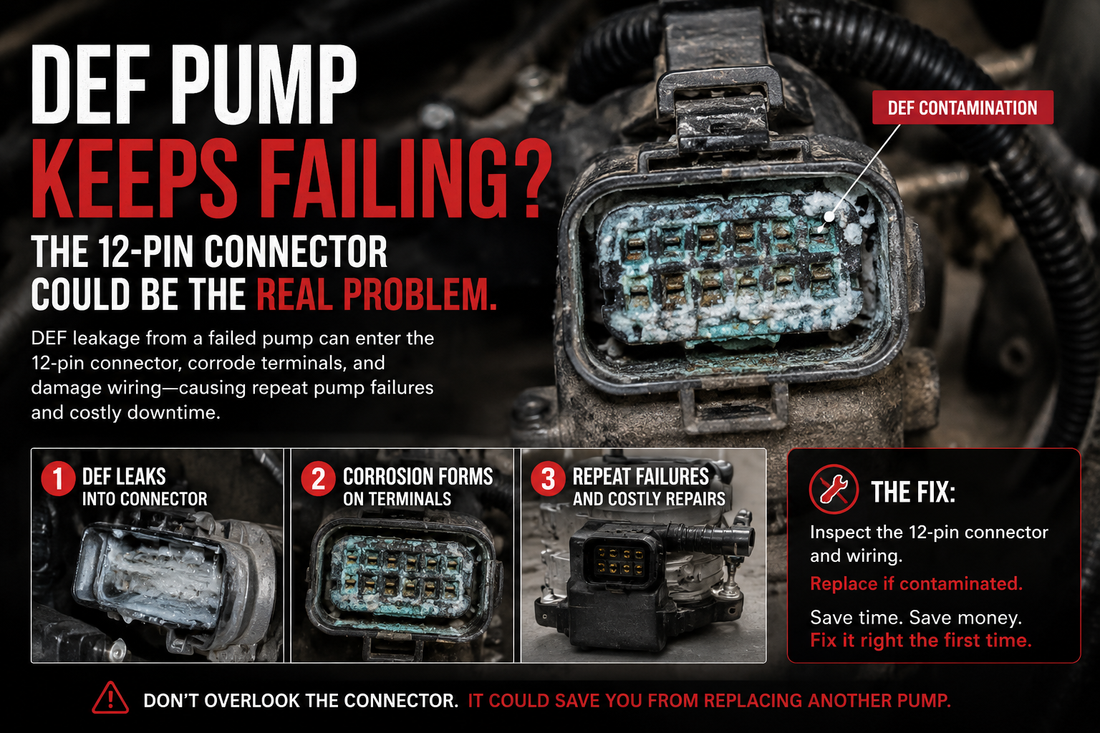

Signs Your 12-Pin Connector Has Been Contaminated
Before replacing another pump, unplug the connector and inspect it carefully.
Look for:
- White or chalky crystal buildup
- Green or blue corrosion on terminals
- Moisture or DEF inside the connector housing
- Burnt or darkened pins
- Loose or swollen terminal seals
If you find any of these, replacing only the pump is rarely the complete repair.
Why Replacement Pumps "Fail" Again
Many repeat failures are actually electrical.
A contaminated connector can create voltage drop, poor communication between the engine ECM and the DEF pump, intermittent operation, and repeated fault codes that mimic a defective pump.
The new pump often gets blamed when the damaged connector is the real culprit.
The Correct Repair Procedure
When replacing a failed DEF pump, we recommend inspecting the connector before installing the new unit.
If contamination is present:
- Remove the failed DEF pump.
- Inspect the 12-pin connector for DEF intrusion.
- Replace the connector or pigtail if any contamination or corrosion is found.
- Repair any damaged wiring.
- Install the new DEF pump and verify proper voltage and communication.
Skipping step 3 is one of the most common reasons we see repeat failures.
Which Trucks Are Most Commonly Affected?
We've seen connector contamination across multiple heavy-duty platforms, including:
- Cummins X15 applications
- PACCAR MX engines
- Volvo D13
- Detroit DD15
- Mack MP engines
While the symptoms vary, the failure pattern is remarkably similar: a failed pump followed by a contaminated electrical connector.
Don't Let a $20 Connector Ruin a $1,000 Repair
Replacing a DEF pump without inspecting the connector is a bit like replacing a battery while leaving corroded battery terminals untouched.
The pump may be new—but the electrical problem is still there.
If your truck has experienced a DEF pump failure, take an extra five minutes to inspect the 12-pin connector. It could save you from replacing another pump, another tow bill, and another round of unnecessary downtime.
